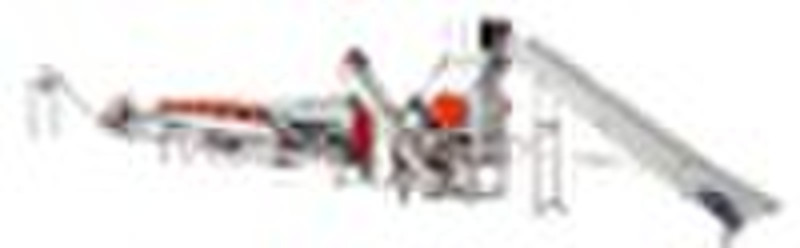

PE/PP Film/bag crushing and washing production lin

Warehouse/Workshop Dimension (M*M*M): 35(L)×12(W)×6(H); with height 7 meters Crane: Machine positioning(provide by customer) Power supply & Installation power According to customer's requirement Wire/cables Wires/cables from power supply to control cabinet of this production line; Water supply hose/pipe Water supply to machines and pools Raw material & formulation Post-consumer PP/PE films Final product & Output capacity Clean plastic films 300kg/h Description of final product Particle size: 50mm/80 (can be designed as per special requirement) Item Name Technical dataPicture of this part 1 Belt conveyor a. Working length:5000mm; width: 600mm. b. Conveying speed:1-10m/min. c. Motor:1.5KW. d. Adopt infinitely variable speed. e. Conveyor material:PVC. 2 Metal detector (Optional) a. Motor power:0.5KW. b. Width:700m. c. Advanced DSP technology. d. Adjust conveyor belt speed. e. Fairly good water proof ability. 3 Crusher --broken with water a. Model:HB-SWP720. b. Rotating and fixed knives(D2 material):6&6 pieces. c. Motor Power:37kw. d. Rotary speed: 580rpm. e. Screen sieve diameter:50mm/80mm. f. Capacity :400kg/h. G. The crusher adopts scissors type crushing, and it can reduce generation of fines. 4 Screw Loader a. motor power: 2.2KW. b. 400kg/h. c. part in contact with material is made of stainless steel d. Effective work lenth:3500mm. 5 Single screw friction washer a. Motor power :11KW. b. Screen sieve diameter:8mm. c. rotation speed: 1000Rpm. d. Part in contact with material is made of stainless steel. e. Effective work lenth:3500mm. 6 Poaching Tank a. Motor:4.5KW=(1.5*3) KW. b. Adopt single screw type. c. L*W*H:6500mm*950mm d. There are four stir rollers on the upper side, made of stainless steel. e. Part in contact with material is made of stainless steel. 7 Lift friction washer a. Capacity :400kg/h. b. Motor power: 11KW. c. part in contact with material is made of stainless steel( paddle thickness: 8mm). d. Effective work lenth:3500mm. e. L*W*H:3600mm*700mm*1050mm. 8 Horizontal dewatering machine a. Motor Power: 37kw. b. Rotation speed: 2000rpm. c. Dewatering tank ,screen are made of stainless steel (Paddle thickness: 8mm). d. Adopt drainage under way. e. NSK bearing. Adopt high speed centrifugal dewatering. the upcoming PE/PP film contains the heat and very dry (below 5% water content). 9 Hopper a. Made of stainless steel. b. volume: 1 m³. c. bracket : d. Silo: 10 Electrical Controler a. Electronic control components (Schneider or Siemens), including circuit breakers, AC contactor, button, indicator light. b. Estimated weight: 50kg*2. c. L*W*H:1200mm*600mm*1400mm. 11 Spare parts a. Rotary and fixed blades 1 set b. Crusher belt 1 set c. Chain on the feeder 1 set d. Dewaterer belt: 1 set e. Electricity box button: 5 pcs f. Electric element: 4 (Schneider) G. Tools: 1 set
