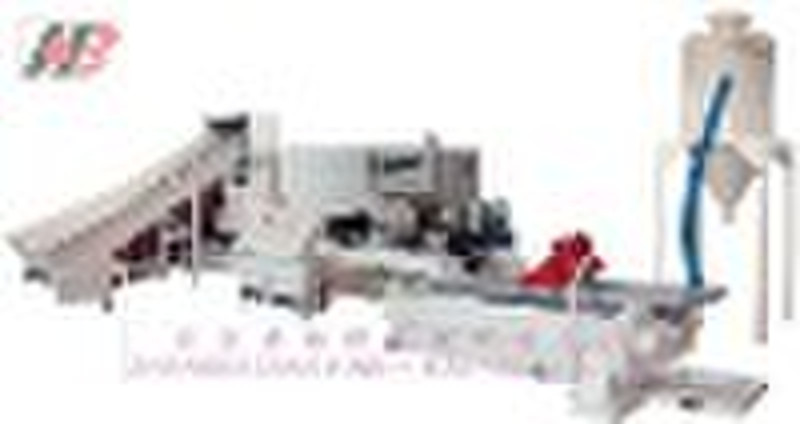

PE/PP film recycling and granulating production li

Output: 250-300kg/h (PE), 200-250kg/h (PP) Consisting of:1. Lifting Conveyor Model: HB40Motor power: 1.5kwWidth of belt: 600mm2. Compactor Motor power: 55kw, made in China, the protection grade of motor is IP44.Rotate speed of cutting circle: 625rpmQuantities of rotate cutting knife: 2 groups, 4 piecesQuantities of fixed knife: 15 piecesThermocouple inside container: 1 piece thermocoupleBaffler system: 1 setIt equips clean-door with excellent seal, so that can clean the rudimental material.Top of container has an exhaust, which can remove the rudimental vapor.3. ZL100/32 Extruder Diameter of screw: Ø100mm, Material: 38CrMoAlA.Both screw and barrel are under nitriding process.L/D=32:1Motor power: 90kw, DC motor, 50Hzmotorto be connected with the reduction boxby belt Electronic parts: Omron temperature control meter, Schneider contactorPre-heater: 7 groups heater, power is 8kw+8kw+1.7kw+1.7kw +8.5kw+8.5kw+1.7kw. 7 groups Air-blower cooling, power of each Air-blower cooling is 0.24kw. (double exhaust )Mould heating: 2 zones, power is 10kwScreen-Changer: Non-stop automatic hydraulic pressure control Diameter of the screen changer: 120mm Oil Pump Power: 2.2kw CB-25 Mould adopts 40Cr forging, quality changeable relevant craftworks to manufacture minutely.Extruder motor collocates high current protection sound-light alarm.The biggest capacity: 250-350kg/hEquipped with a vacuum pump, motor power 2.2kWx2=4.4kw.4. Water-Ring Pelletizer Motor power: 1.1kwQuantities of cutting blade: 4 piecesWater Pump Power: 1.5kwShelf of knife and shaft of palletizing are made of stainless steel.5. Vibration Sieve Motor power: 0.38kw×2 Water pump: 3kwCapacity: 300-400kg/h6. Air-blowing conveying equipment Blower power: 4kw Hopper, Air-blowing conveying pipes, injector are all made of stainless steel 7. Storage hopper Volume: 1 m³ Materials: stainless steel
